SOX 90w Low Pressure Sodium Lamp Kit

The 90W SOX Lamp Kit includes everything needed to build a complete low-pressure sodium (SOX) lighting system in one convenient package. Each kit contains a matched 90W SOX lamp, electronic ballast, and BY22d lamp socket, ensuring compatibility while simplifying installation compared to sourcing components separately.

At the heart of the system is the 90W SOX lamp, which produces a pure 589nm monochromatic yellow light. Unlike conventional light sources, this narrow-spectrum output removes nearly all color information from a scene, creating the distinctive visual effect that has made SOX lighting valuable for scientific research, optical testing, large-scale installations, and immersive visual environments.

The included electronic ballast provides reliable ignition and stable operation without requiring an external ignitor, while the BY22d lamp socket ensures a secure mechanical fit and dependable electrical connection. Together, these components form a complete, purpose-built system designed for consistent performance and long-term reliability.

As the highest-output option in the SOX kit lineup, the 90W kit is ideal for larger spaces where stronger illumination is required while maintaining the unique monochromatic characteristics of SOX lighting. It is particularly well suited for exhibition spaces, museums, film and television productions, large-scale art installations, and advanced research applications.

Please note that wiring is not included. Designed for use with 90W SOX systems only.

Large-scale black-fire and flame visualization experiments
Scientific research and optical testing
Advanced color perception and vision studies
Museum exhibits and educational displays
Art installations and immersive exhibitions
Film, television, and theatrical productions
Photography studios and large creative environments
Restoration and maintenance of existing SOX lighting systems

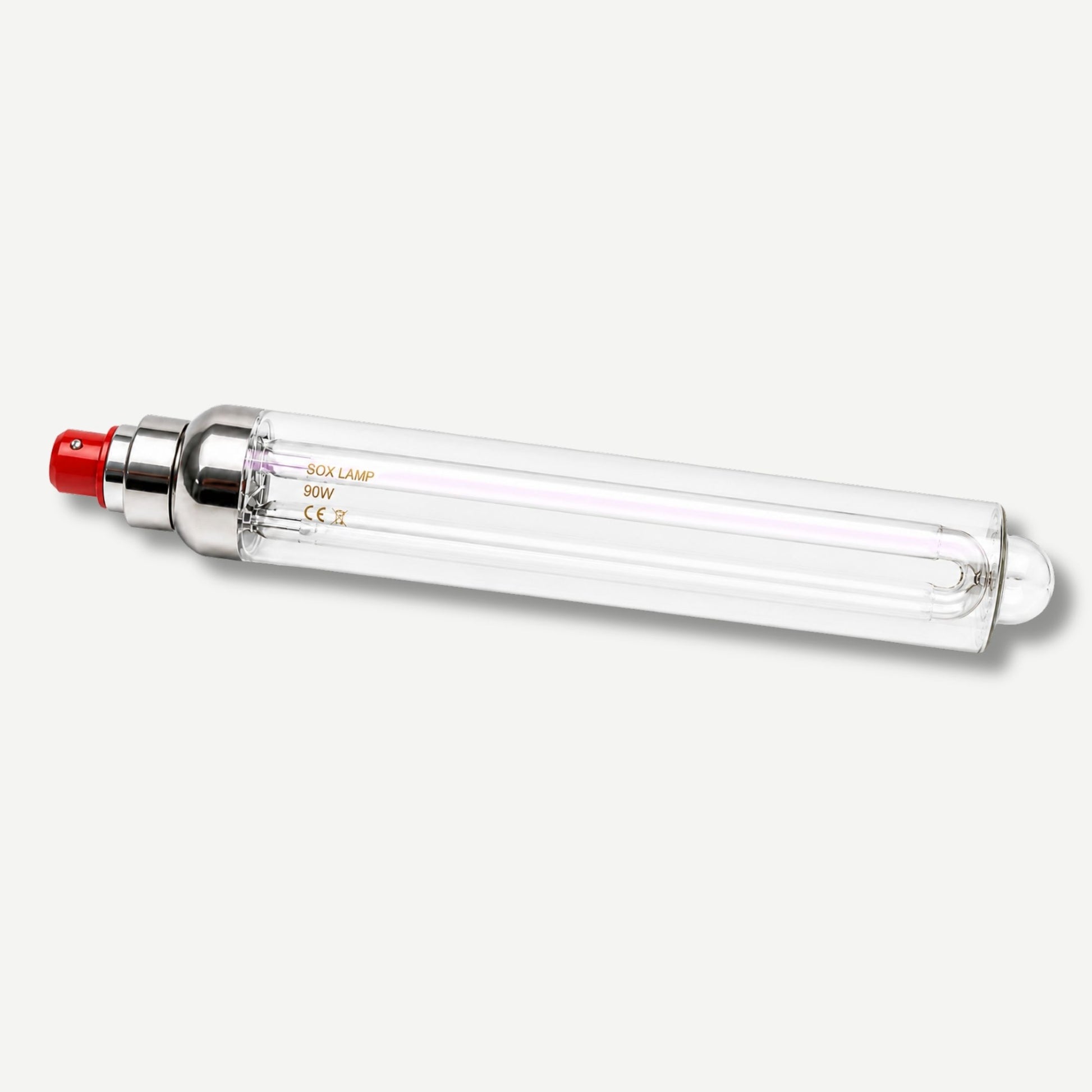

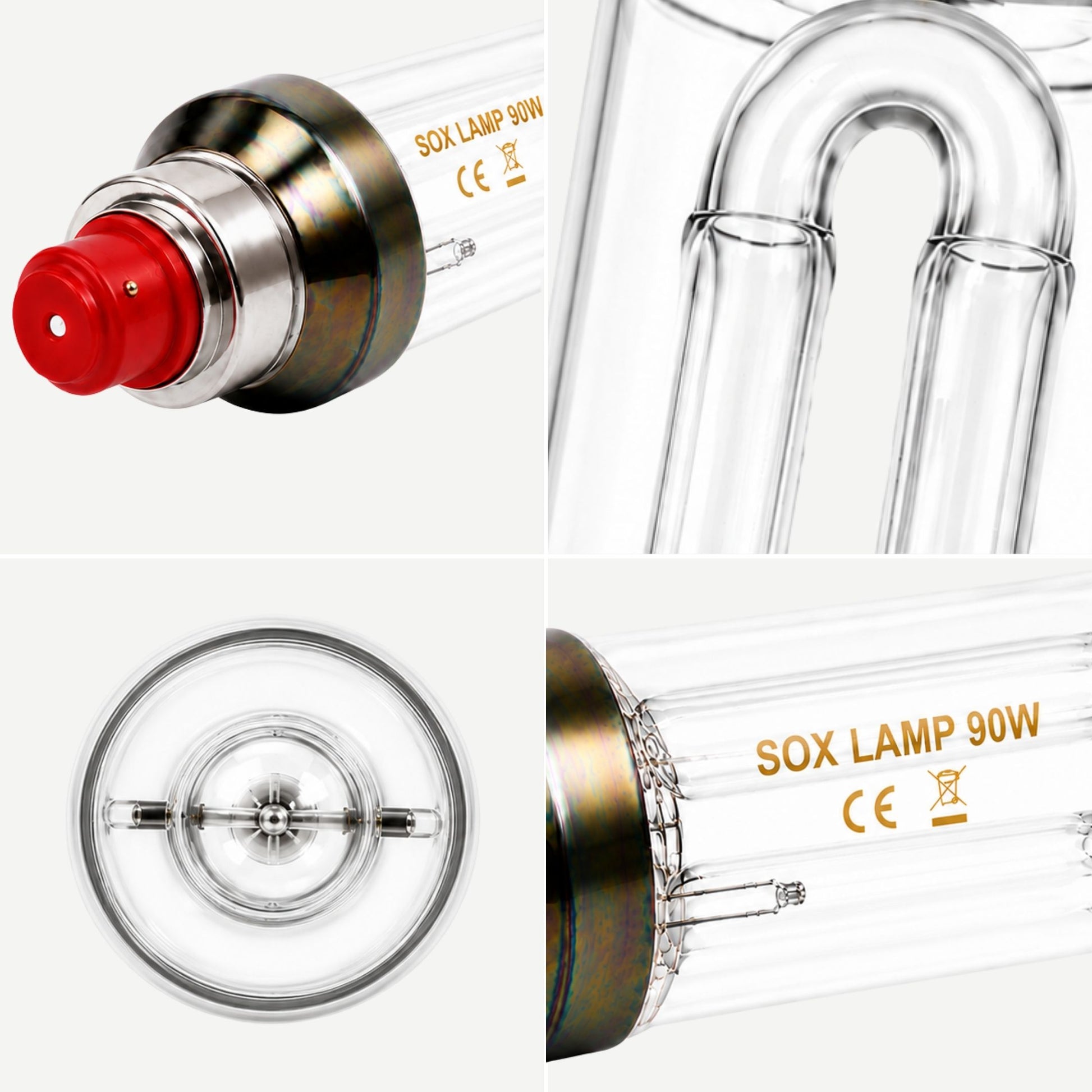

1. 90W SOX LAMP:
Electrical Specifications:
Nominal Wattage: 90w
Rated Wattage: 91w
Lamp Current (EM) (Nom): 0.82A
Voltage (Nom): 112v

Lifespan:
Average Lifespan: 12,000 hrs
Life to 8% Failures (Nom): 6,000 hrs
Life to 30% Failures (Nom): 8,000 hrs
Life to 50% Failures (Nom): 12,000 hrs

Temperatures:
Maximum Permitted outer bulb temperature: 150 °C / 302°F
Maximum Permitted base edge temperature: 150 °C / 302°F

Base: BY22D

Energy Efficiency Class: A++

Operating Position:
H110 [ Hanging +/-110D or Base Up (BU)]

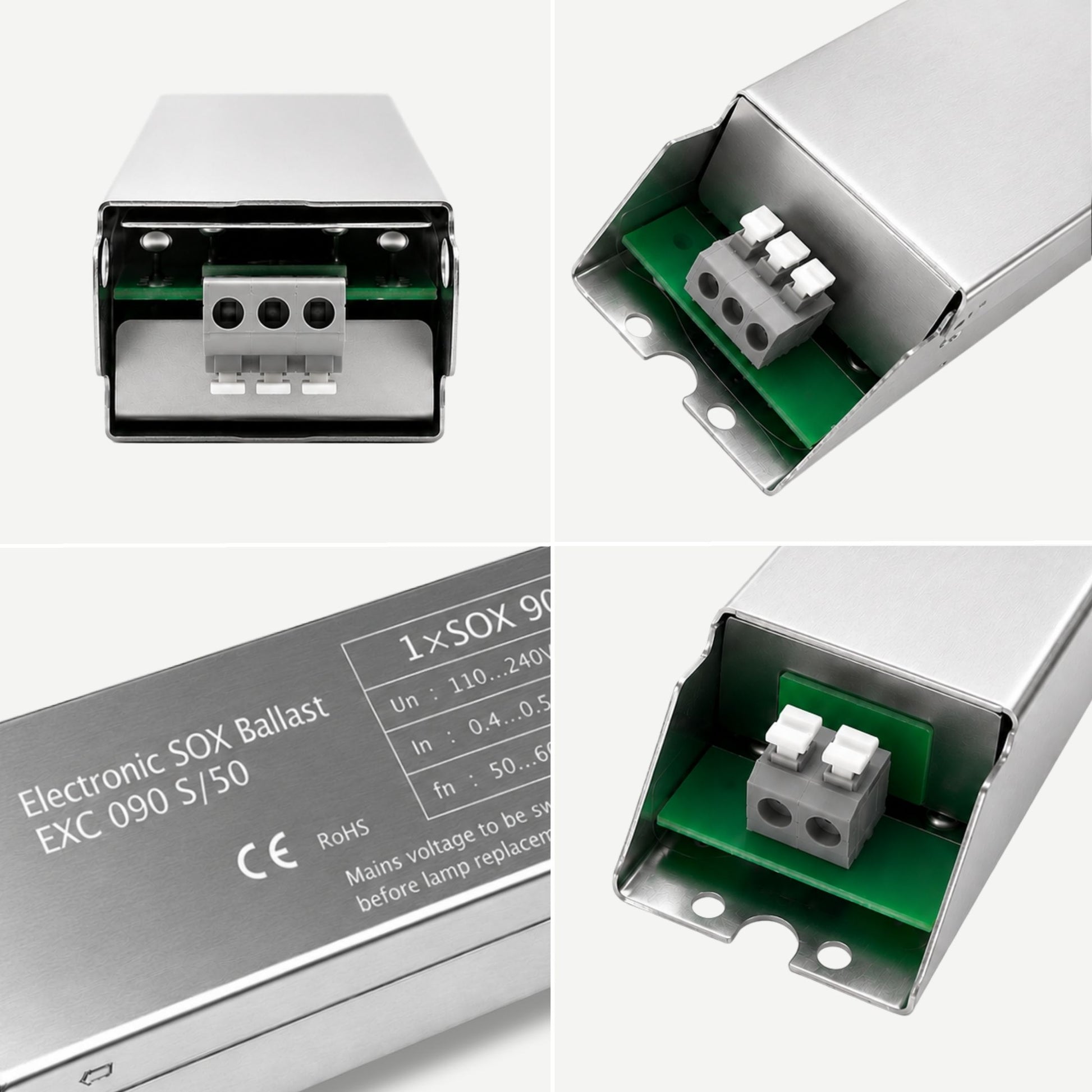

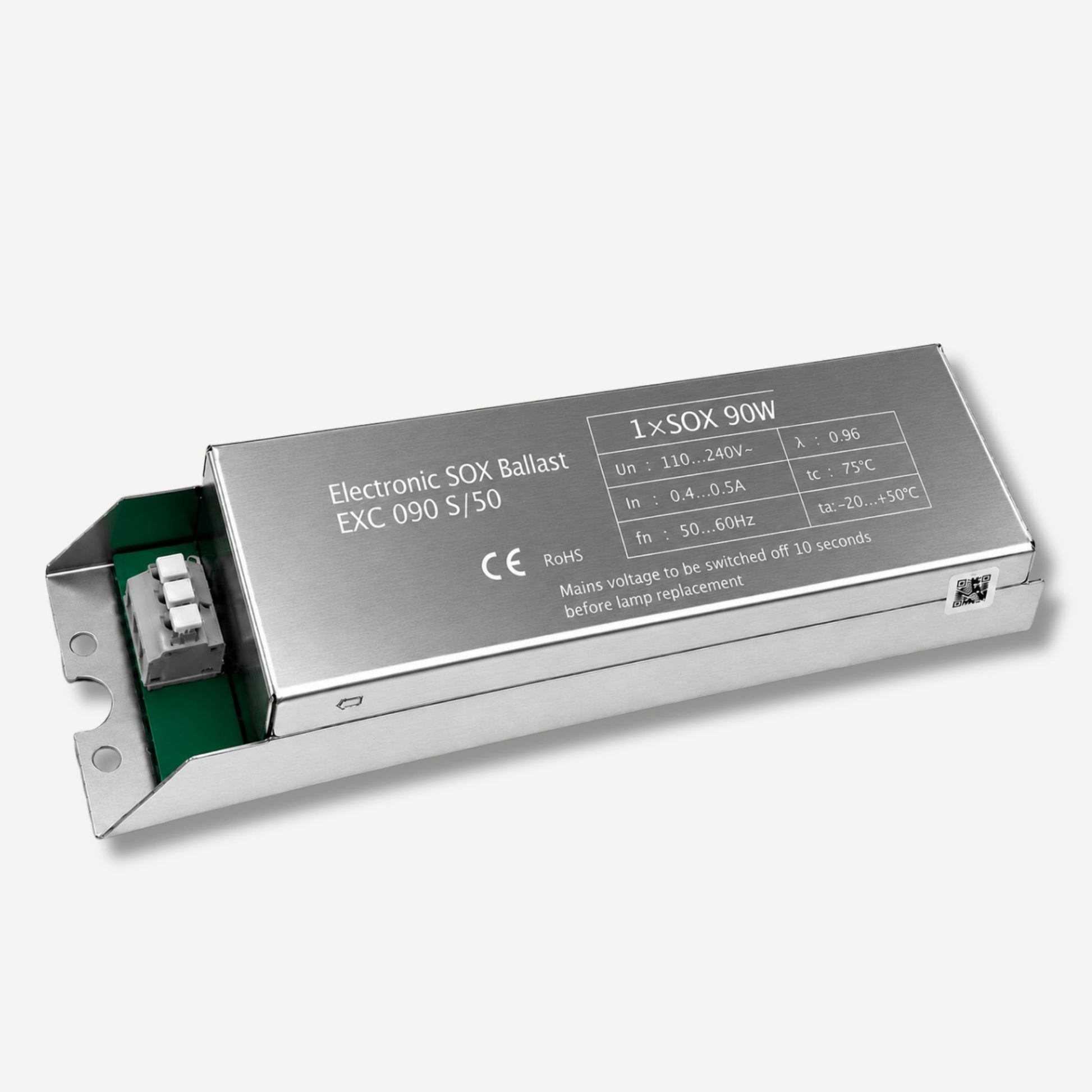

2. 90W ELECTRONIC BALLAST
Rated Lamp Power on SOX (W): 90
Input Current (Nom) (A): 0.41
Input Voltage (V): 110 to 240
Minimum Mains Voltage Operation (Min) (V): 180
Ignition Voltage (Max) (KV): 1.0
Lamp Power Tolerance: -10%/+10%
Dimming: No
Ingress Protection: IP20
T-Ambient (Max) (°C): 50
T-Case Lifetime (Nom) (°C): 75

3. LAMP SOCKET:
Ceramic Base
Cap-Base: BY22
Voltage (Nom): 500 v
Current (Nom): 4 A
Bayonet Base Temperature (Max) 170 °C
Impulse withstand category: III
Contact Wire Cross Section (mm2): 0.70-2.50

Luminous Flux: 13,600 lm
Luminance: 10 cd/cm²
Luminous Efficacy: 150 lm/W
Energy Efficiency Class: A++

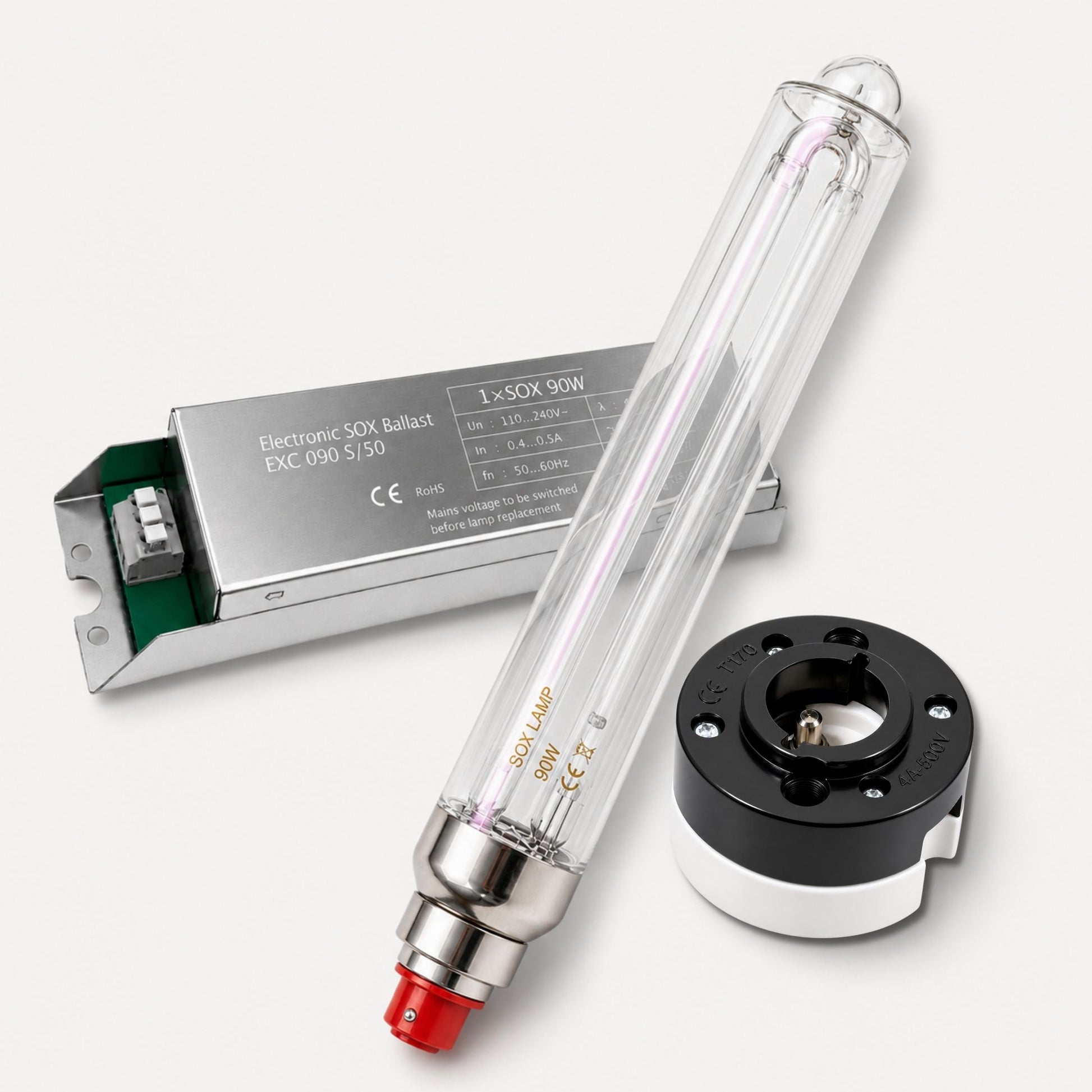

Unit Count: 1 Count of SOX 90W Lamp, 1 Count of 90W Electronic Ballast, 1 Count of Lamp Socket

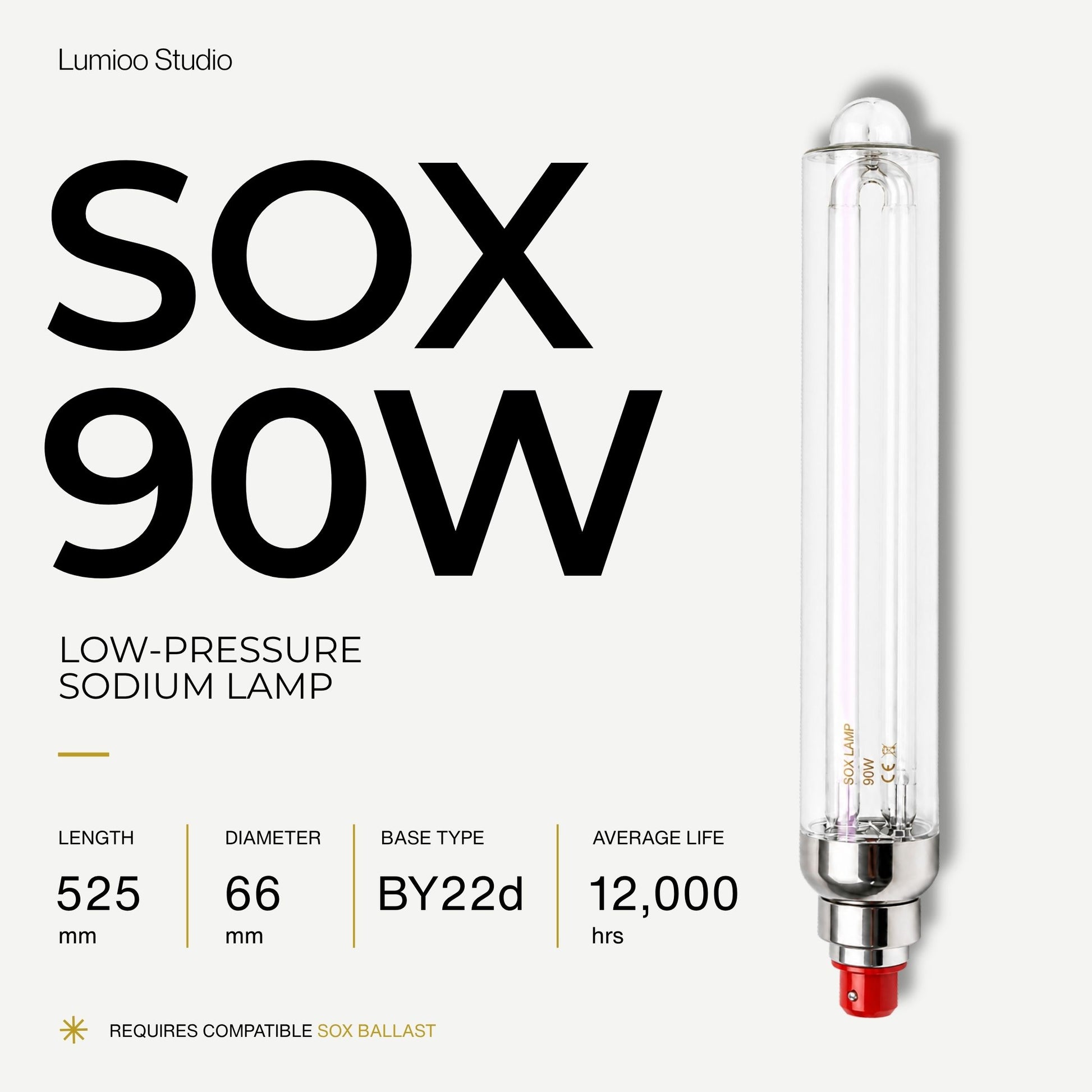

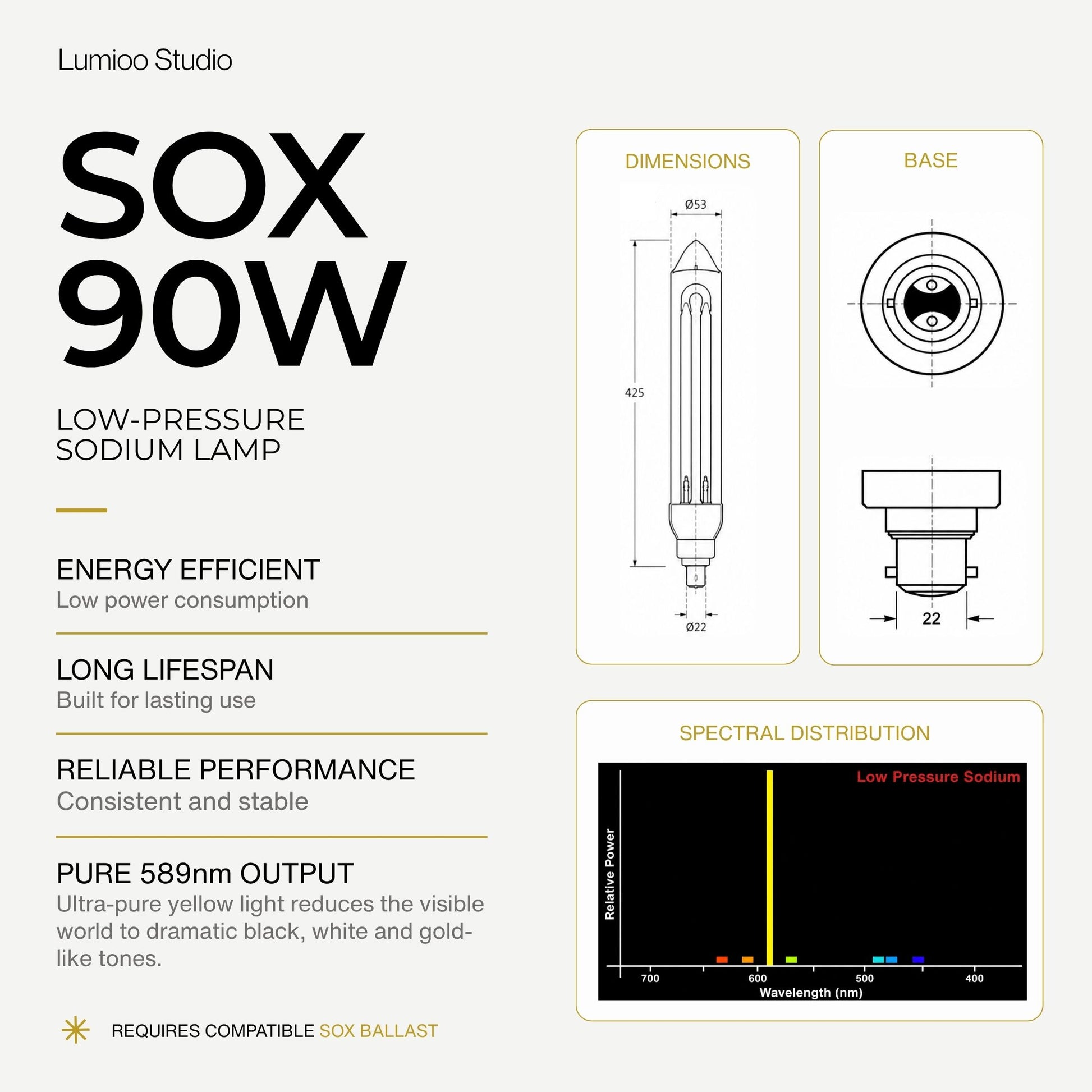

1. 90W SOX LAMP
Max Diameter: 66mm / 2.60 in
Max Length: 525mm / 20.67 in

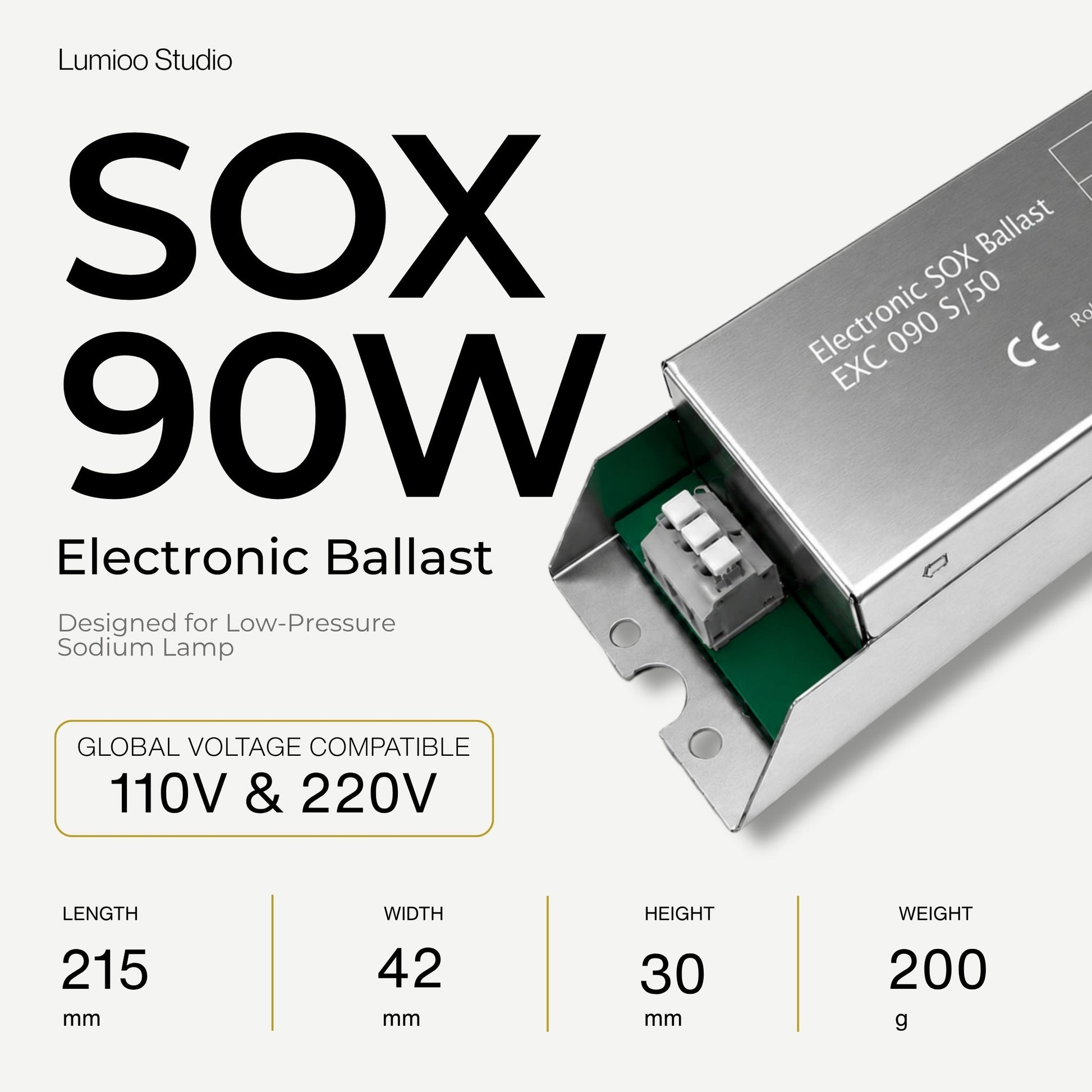

2. 90W ELECTRONIC BALLAST
Dimension (LxWxH) : Approx. 215 x 42 x 30mm /8.46 × 1.65 × 1.18 in
Mounting Hole spacing length: 207mm / 8.15 in
Weight: 200g / 7.05 oz

3. LAMP SOCKET
Max Diameter: 55mm
Max Length: 55mm

UKCA, RoHS, CE

In stock in the U.S. and ready to ship worldwide. Every order is carefully inspected and securely packaged before shipment.

Free shipping to the U.S. and Canada. Free shipping to Oceania on orders over $299 USD. Shipping charges for other destinations are calculated at checkout. Tracking is included with every order.

30-day returns on all eligible orders. U.S. returns are free, while international customers are responsible for return shipping costs.

International orders may be subject to import duties, taxes, or customs fees. These charges are the responsibility of the customer and are not included in the purchase price or shipping cost.

All SOX lamp kits are backed by a 1-year limited warranty against manufacturing defects. If you experience an issue with your order, please contact our team and we'll work with you to find a solution.

Q: What is included in the 90W SOX Lamp Kit?**
A: The kit includes one 90W SOX lamp, one 90W electronic ballast, and one BY22d lamp socket. These components are matched to work together as a complete SOX lighting system.

Q: Do I need a separate ignitor?**
A: No. The included electronic ballast provides ignition functionality and does not require an external ignitor.

Q: Is this kit compatible with both 120V and 240V electrical systems?
A: Yes. The included ballast supports 110–240V mains voltage. Please refer to the wiring diagram provided in the product images for installation guidance.

Q: What is the advantage of a 90W SOX lamp compared to lower wattages?
A: The 90W SOX lamp provides the highest light output in the SOX product range, making it well suited for larger spaces, exhibition environments, film productions, and research applications where greater illumination is required while maintaining the unique 589nm monochromatic light characteristic of SOX lighting.
