SOX 55w Low Pressure Sodium Lamp Kit

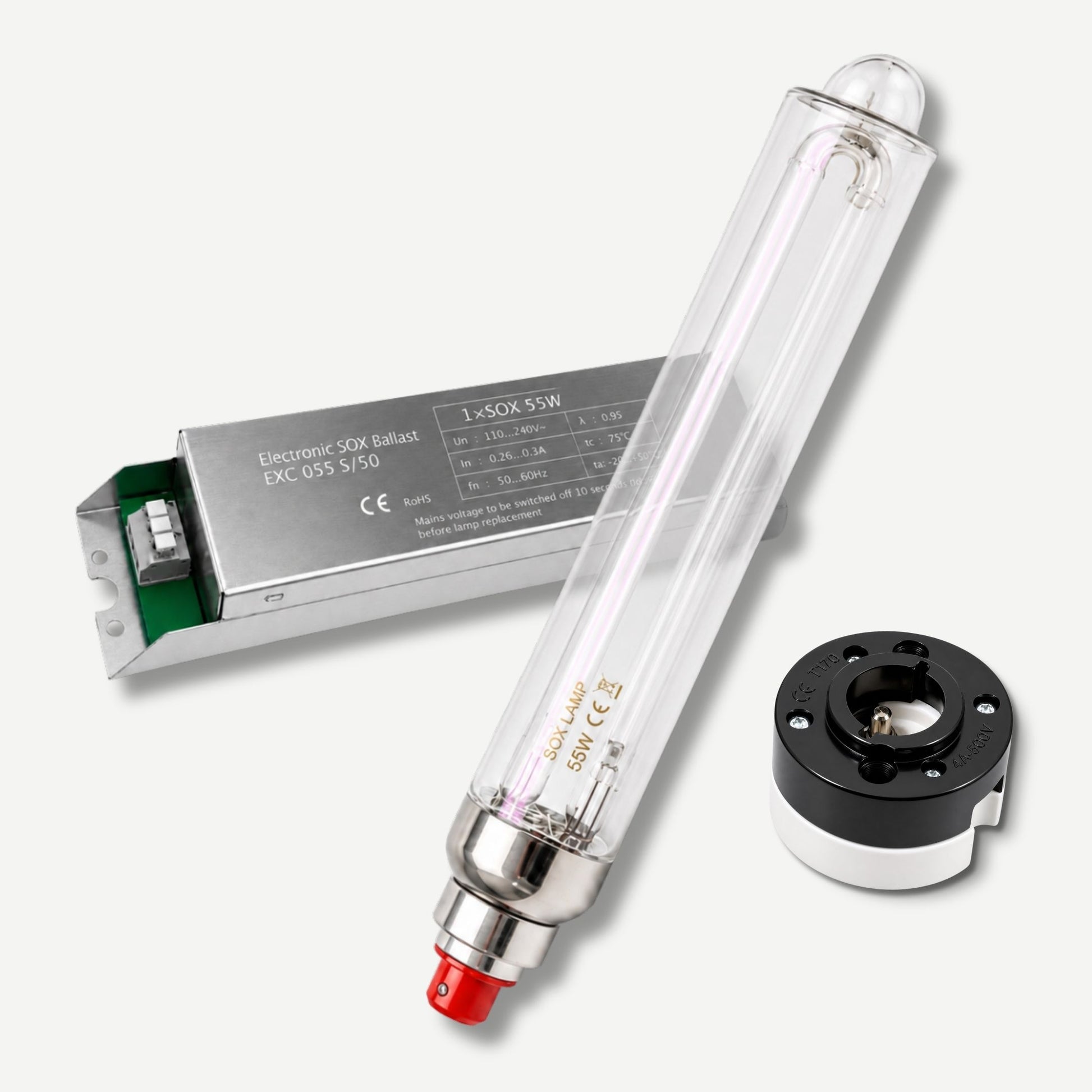

The 55W SOX Lamp Kit includes everything needed to build a complete low-pressure sodium (SOX) lighting system in one convenient package. Each kit contains a matched 55W SOX lamp, electronic ballast, and BY22d lamp socket, ensuring compatibility while simplifying installation compared to sourcing components individually.

At the heart of the system is the 55W SOX lamp, which produces a pure 589nm monochromatic yellow light. Unlike conventional light sources, this narrow-spectrum output removes nearly all color information from a scene, creating the distinctive visual effect that has made SOX lighting valuable for scientific research, optical testing, color perception studies, and immersive creative environments.

The included electronic ballast provides reliable ignition and stable operation without requiring an external ignitor, while the BY22d lamp socket ensures a secure mechanical fit and dependable electrical connection. Together, these components form a complete, purpose-built system designed for consistent performance and long-term reliability.

With its higher light output, the 55W kit is particularly well suited for larger experimental setups, exhibition spaces, photography studios, film productions, and art installations where stronger illumination is desired while maintaining the unique monochromatic characteristics of SOX lighting.

Please note that wiring is not included. Designed for use with 55W SOX systems only.

Large-scale black-fire and flame visualization experiments
Scientific research and optical testing
Physics demonstrations and educational laboratories
Monochromatic lighting and color perception studies
Art installations and immersive exhibitions
Film, television, and theatrical productions
Photography studios and creative visual effects
Restoration and maintenance of existing SOX lighting systems

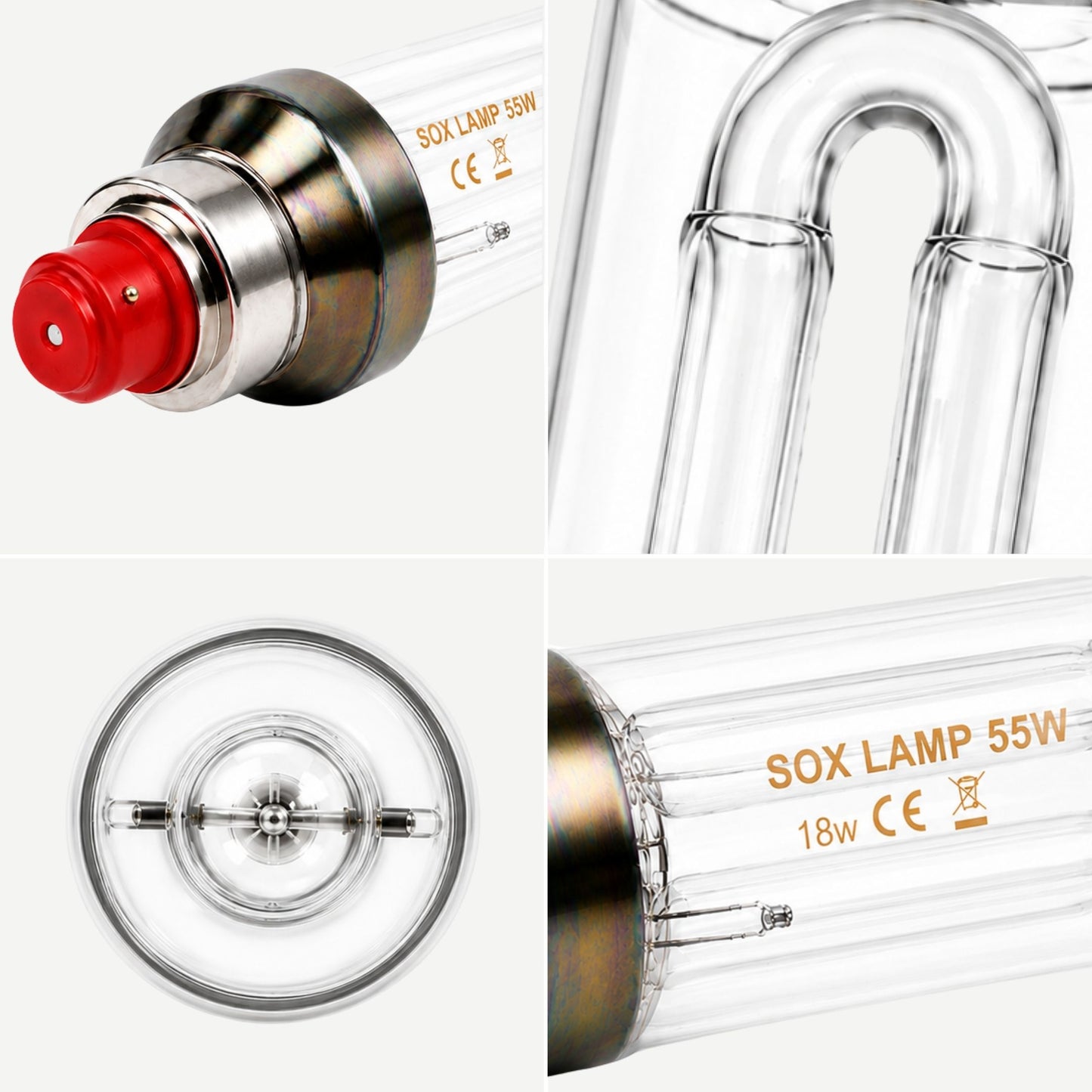

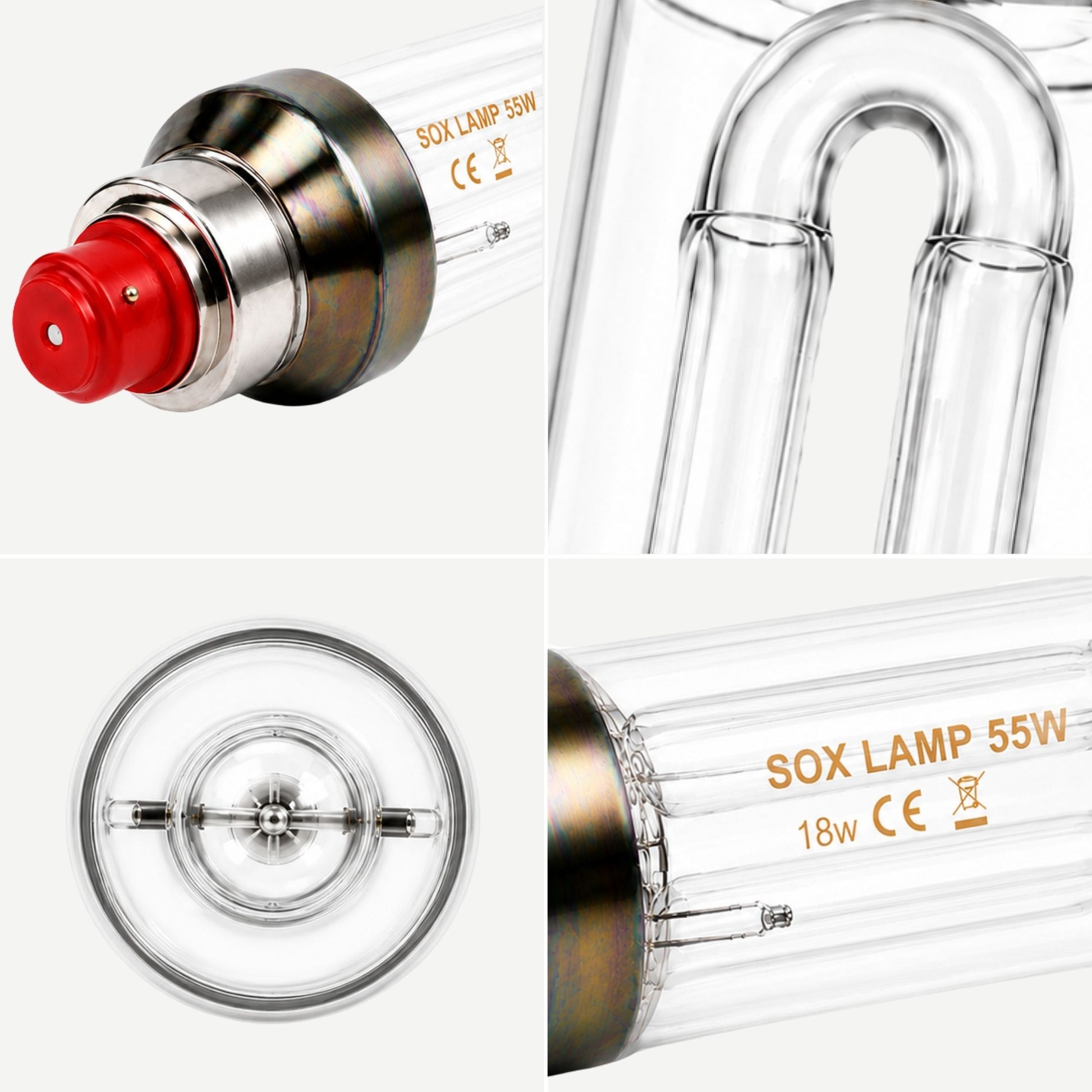

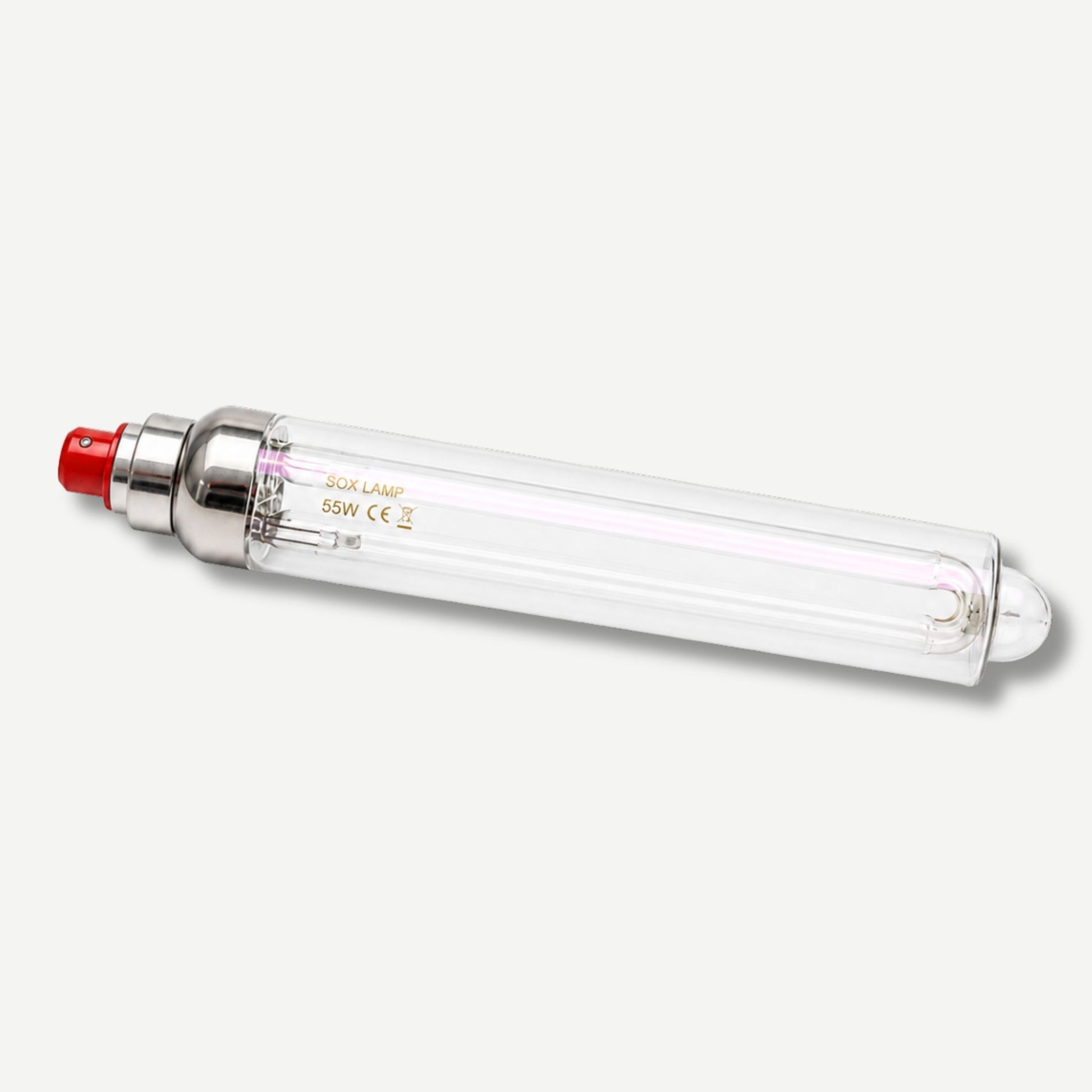

1. 55W SOX LAMP
Electrical Specifications:
Nominal Wattage: 55w
Rated Wattage: 56w
Lamp Current (EM) (Nom): 0.51A
Voltage (Nom): 109v

Lifespan:
Average Lifespan: 12,000 hrs
Life to 8% Failures (Nom): 6,000 hrs
Life to 30% Failures (Nom): 8,000 hrs
Life to 50% Failures (Nom): 12,000 hrs

Temperatures:
Maximum Permitted outer bulb temperature: 150 °C / 302°F
Maximum Permitted base edge temperature: 150 °C / 302°F

Base: BY22D

Energy Efficiency Class: A++

Operating Position:
H110 [ Hanging +/-110D or Base Up (BU)]

2. 55W ELECTRONIC BALLAST
Rated Lamp Power on SOX (W): 55
Input Current (Nom) (A): 0.26
Input Voltage (V): 110 to 240
Minimum Mains Voltage Operation (Min) (V): 180
Ignition Voltage (Max) (KV): 1.0
Lamp Power Tolerance: -10%/+10%
Dimming: No
Ingress Protection: IP20
T-Ambient (Max) (°C): 50
T-Case Lifetime (Nom) (°C): 75

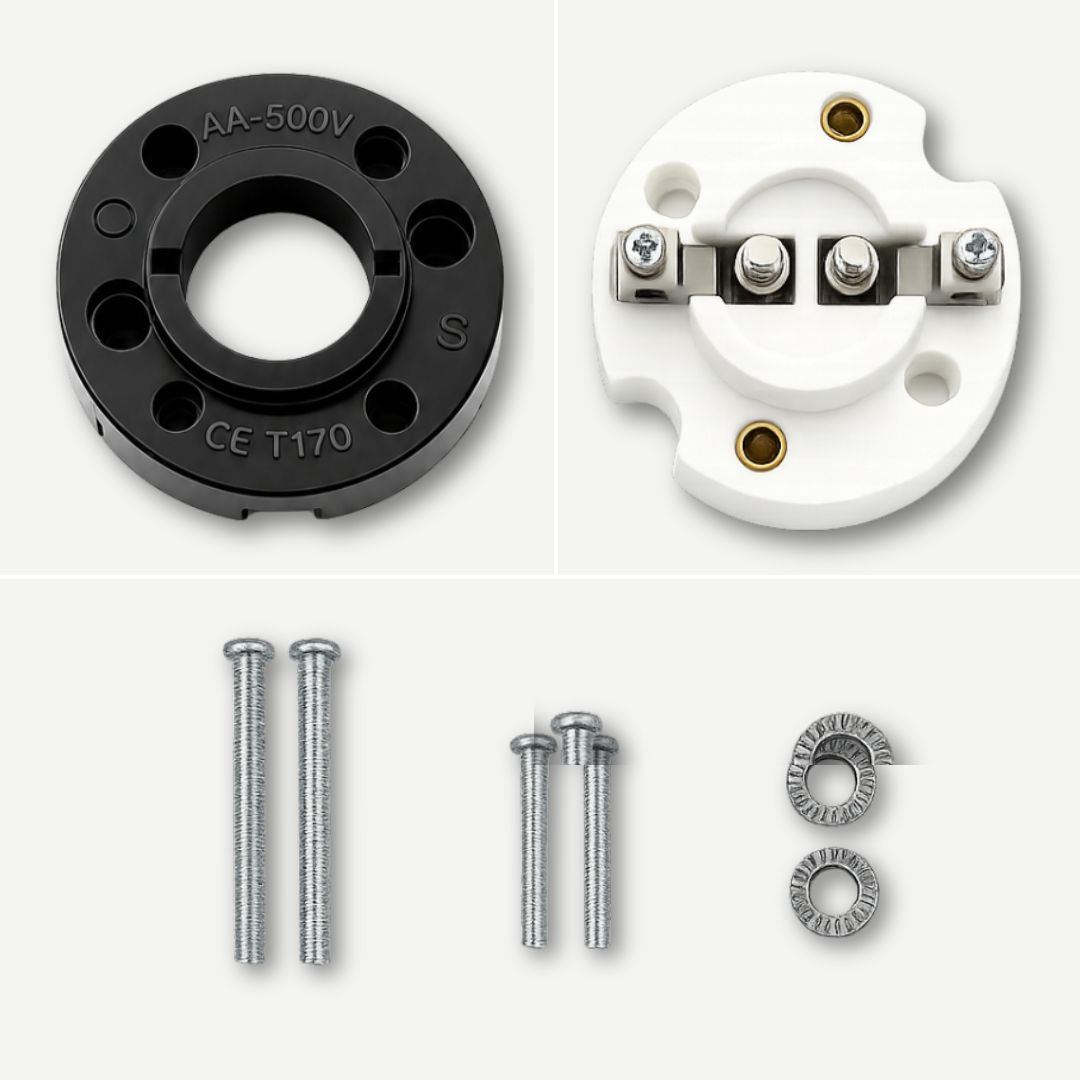

3. LAMP SOCKET
Ceramic Base
Cap-Base: BY22
Voltage (Nom): 500 v
Current (Nom): 4 A
Bayonet Base Temperature (Max) 170 °C
Impulse withstand category: III
Contact Wire Cross Section (mm2): 0.70-2.50

Luminous Flux: 7800 lm
Luminance: 10 cd/cm²
Luminous Efficacy: 140 lm/W

Unit Count: 1 Count of SOX 55w Lamp, 1 Count of 55w Electronic Ballast, 1 Count of Lamp Socket

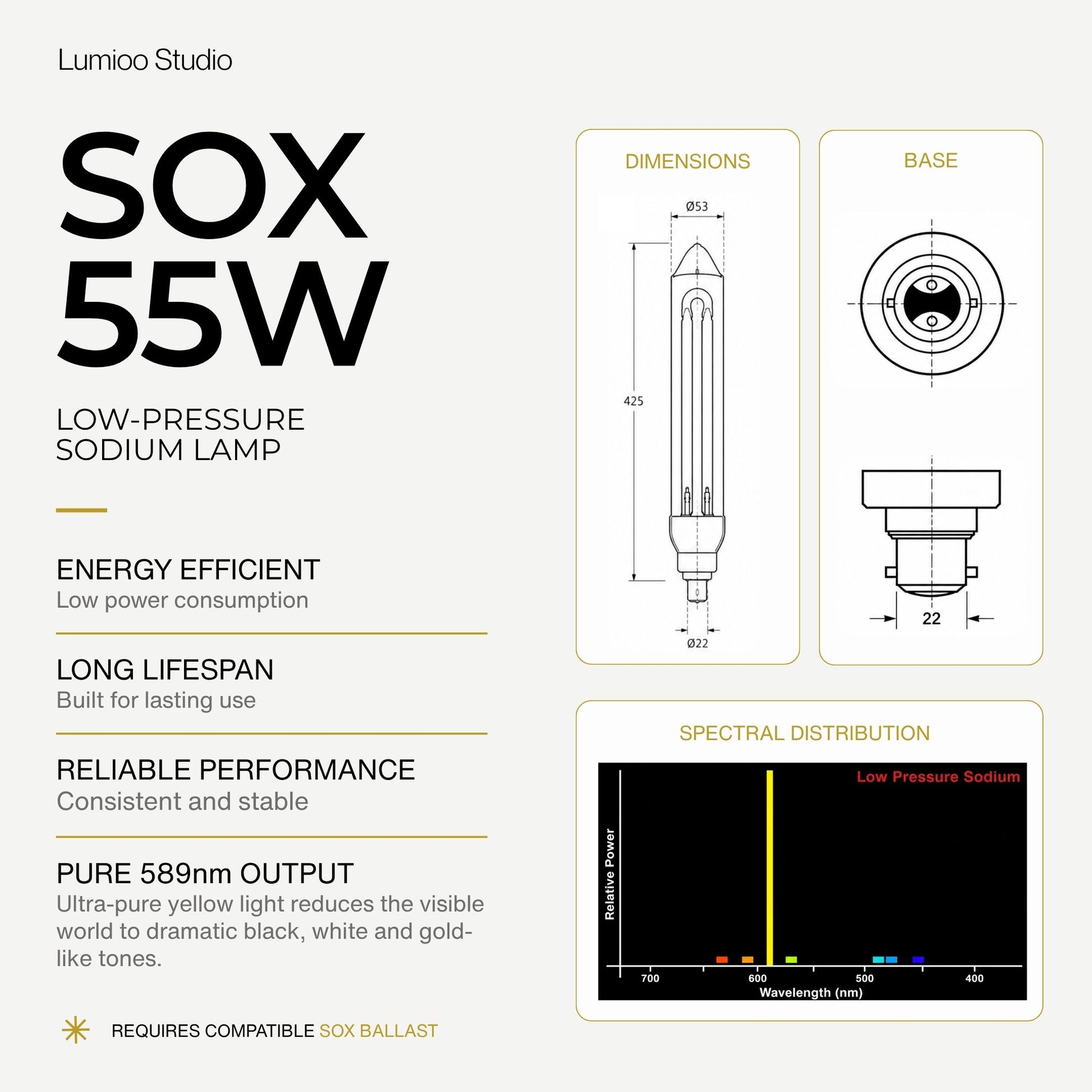

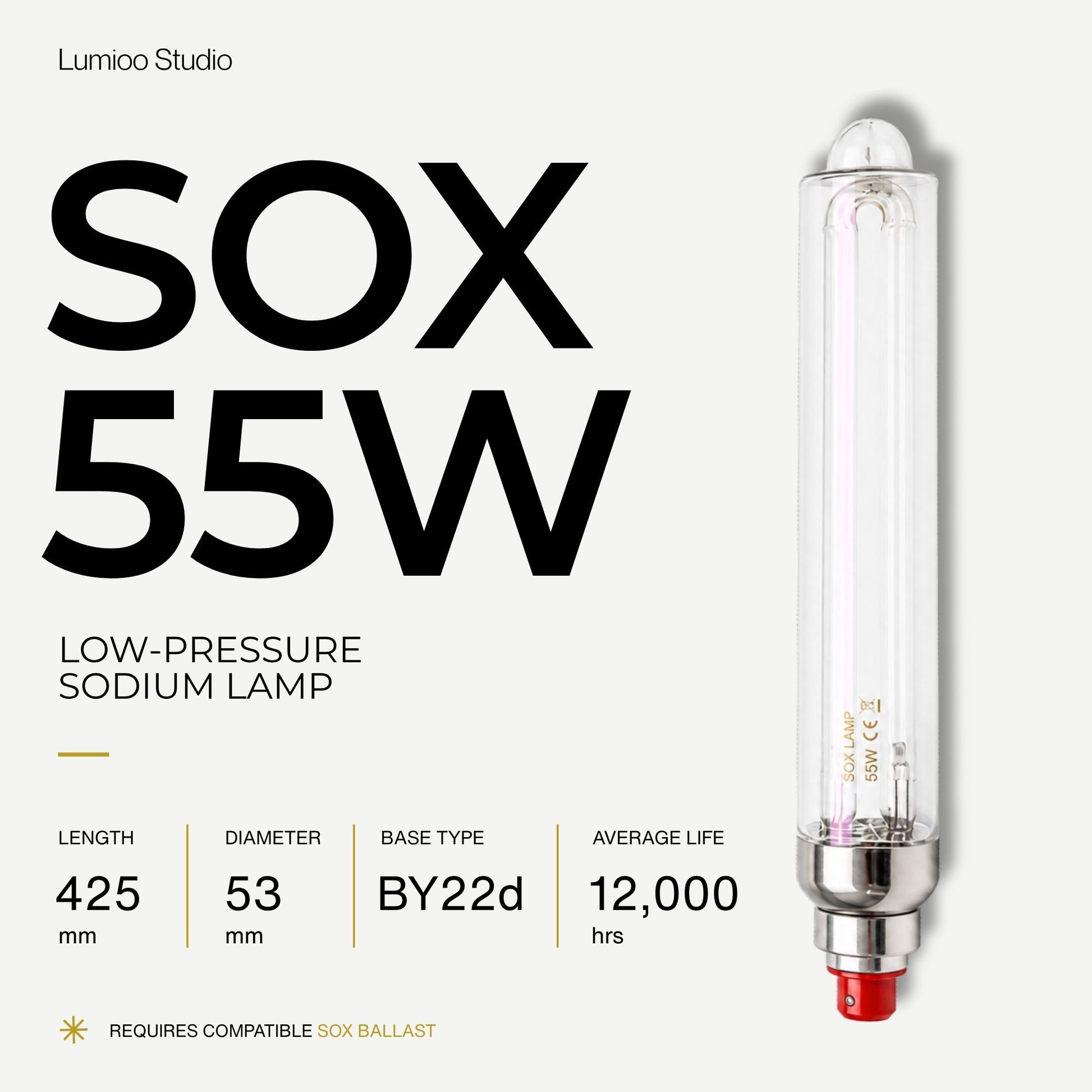

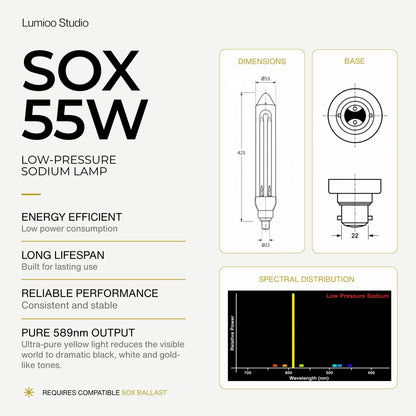

1. 55W SOX LAMP
Max Diameter: 53mm / 2.09in
Max Length: 425mm / 16.73in

2. 55W ELECTRONIC BALLAST
Dimension (LxWxH) : Approx. 215 x 42 x 30mm /8.46 × 1.65 × 1.18 in
Mounting Hole spacing length: 207mm / 8.15 in
Weight: 200g / 7.05 oz

3. LAMP SOCKET
- Max Diameter: 55mm
- Max Length: 55mm

UKCA, RoHS, CE

In stock in the U.S. and ready to ship worldwide. Every order is carefully inspected and securely packaged before shipment.

Free shipping to the U.S. and Canada. Free shipping to Oceania on orders over $299 USD. Shipping charges for other destinations are calculated at checkout. Tracking is included with every order.

30-day returns on all eligible orders. U.S. returns are free, while international customers are responsible for return shipping costs.

International orders may be subject to import duties, taxes, or customs fees. These charges are the responsibility of the customer and are not included in the purchase price or shipping cost.

All SOX lamp kits are backed by a 1-year limited warranty against manufacturing defects. If you experience an issue with your order, please contact our team and we'll work with you to find a solution.

Q: What is included in the 55W SOX Lamp Kit?
A: The kit includes one 55W SOX lamp, one 55W electronic ballast, and one BY22d lamp socket. These components are matched to work together as a complete SOX lighting system.

Q: Do I need to purchase a ballast or socket separately?
A: No. The ballast and socket are included with the kit, eliminating the need to source compatible components individually. Please note that wiring is not included.

Q: Do I need a separate ignitor?
A: The included electronic ballast provides ignition functionality and does not require an external ignitor.

Q: Is this kit compatible with both 120V and 240V electrical systems?
A: Yes. The included ballast supports 110–240V mains voltage. Depending on the production batch, some ballasts may have diagrams or markings on the casing that reference 220–240V as the nominal or optimal operating voltage. However, these ballasts are designed to operate on both 110–120V and 220–240V AC power systems. Customers in the U.S. can use them without issue, and no voltage converter is required.

Q: Is this kit suitable for black-fire experiments?
A: Yes. The 55W SOX lamp produces a pure 589nm monochromatic light source, making it suitable for black-fire demonstrations, flame visualization, and optical experiments where higher light output is desired.
